[wii-clip]

WII-CLIP V4C ---> Support D2pro 9 wires chip , in stock now.
And it work with D2C2 too if you use the last D2Pro-9 chip!

The V4C looking:



After soldered:

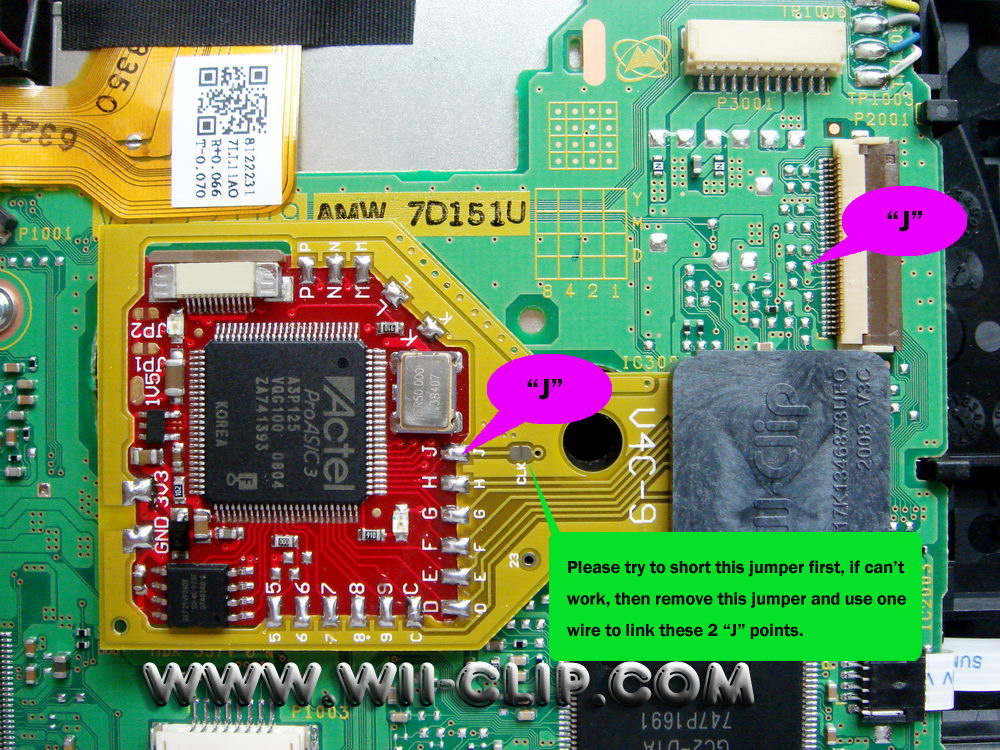

The new V4C install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "J" points.

Warning: don't keep the "CLK" jumper and link 2 "J" points at the same time!



link: wii-clip for WIIKEY,D2CKEY,D2CPRO,ARGON,D2PRO, WASABI and DMS,D2A,D2B,D2C for wii console!

[ozmodchips]

hehe, 10 of those points dont need to be soldered but we will be soldering them all as when customers get them , they freak out if everything is not soldered.

ozmodchips have theirs in the air (thanks Mr wiiclip), and they will be in stock on the 20th or 21st.

We will also have the d2c2 compliant d2pros to bundle these with....very soon

stay tuned!

http://www.ozmodchips.com/wiiclip-v4...ire-p-150.html

Free shipping for wiinewz members. Use 'wnzfs'. If you want to use it, you must leave your forum name in the order comments, otherwise we will cancel the order. [/SIZE]

[Mycow]

Hi!

I want to mod my Wii but I really wanted to use Wii-Clip to keep my Wii free of soldered wires.
I'm almost buying the Wii-Clip V4 with the D2PRO 15 wires install because the version V4B for the D2PRO9 needs to sold 1 wire to the Wii, although I would prefer to have the D2PRO9 than the D2PRO 15 wires.
But now with the V4C I'm confused! Can you tell me what's the chance that the CLK Jumper won't work?

Thanks a lot!

[WesTek]

Originally Posted by ozmodchips

We will also have the d2c2 compliant d2pros to bundle these with....very soon

stay tuned!

So is it official then? It will be a new chip to handle these new boards instead of a firmware revision for the existing D2Pros??

[cloudspear]

what does "short the CLK jumper" mean. i'm a newbie at these modding and tech terms. how to do a short?

[WesTek]

Originally Posted by cloudspear

what does "short the CLK jumper" mean. i'm a newbie at these modding and tech terms. how to do a short?

Just means you need to connect both pads for the CLK together... Whether it is with solder itself or putting a bit of wire between the two... Both pads need to be connected in order to short it.

[ozmodchips]

Originally Posted by WesTek

So is it official then? It will be a new chip to handle these new boards instead of a firmware revision for the existing D2Pros??

ok
copy and paste this as its going to be asked a million times


Its the same chip as the d2pro 9 wire. No new hardware. The firmware will be flashed on their first from their factory, and then the manual update will follow soon.

Delivering an update is harder then flashing them in the factory apparently.

[spyman]

nice to see they took our request seriously

[ozmodchips]

You requested the J point?

[WesTek]

Originally Posted by ozmodchips

ok
copy and paste this as its going to be asked a million times


Its the same chip as the d2pro 9 wire. No new hardware. The firmware will be flashed on their first from their factory, and then the manual update will follow soon.

Delivering an update is harder then flashing them in the factory apparently.

Glad to hear that... So the JTAG System earns a point.

Thanks for the info buddy
